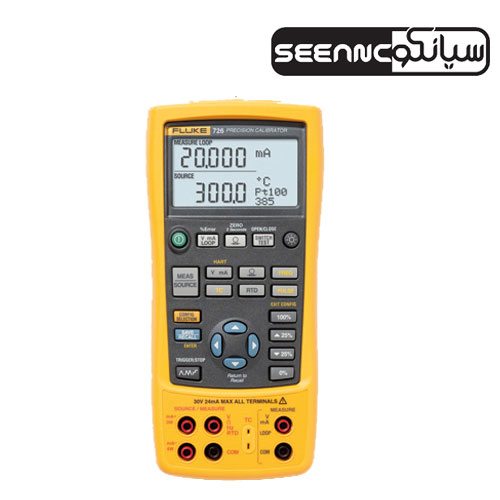

کالیبراتور مولتی فانکشن دقت بالا فلوک مدل Fluke 726

دقت اندازه گیری

ولتاژ DC

30.000 V

0.01% + 2 mV (upper display)

20.000 V

0.01% + 2 mV (lower display)

90.00 mV

0.01% + 10 μV

-10.00 mV to 75.00 mV

0.025% + 1 count (via TC connector)

جریان DC

24.000 mA

0.01%+ 2 mA

مقاومت

0.0 to 4000.0 Ω

± 0.015%

فرکانس

2.0 to 1000.0 CPM

0.05% + 0.1 cpm

1.0 to 1000.0 Hz

0.05% + 0.1 Hz

1.00 to 15.00 kHz

0.05% + 0.01 kHz

Sensitivity

1 V peak-to-peak-minimum

فشار

Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.

دقت سورس

ولتاژ DC

100.00 mV

0.01% + 10 μV

20.000 V

0.01% + 2 mV

-10.00 mV to 75.00 mV

0.025% + 1 count (via TC connector)

جریان DC

24.000 mA (Source)

0.01% + 2 μA

24.000 mA (Simulate)

0.01% + 2 μA

مقاومت

Range, accuracy (percent of reading + floor) and excitation current

5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA

5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 3 mA

400 to 1500 Ω, 0.015% + 0.5 Ω, 0.05 to 0.8 mA

1500 to 4000 Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA

فرکانس

2.0 to 1000.0 CPM

0.05%

1.0 to 1000.0 Hz

0.05%

1.0 to 10.0 kHz

0.25%

10.0 to 15.0 kHz

0.5%

Waveform

5 V p-p squarewave, -0.1 V offset

ترموکوپل و RTDs

دقت اندازه گیری و سورس – ترموکوپل

Cu10

1.8°C

NI-120

0.15°C

PT-100 (385)

0.45°C

PT-100 (392)

0.35°C

PT-100 (391-JIS)

0.35°C

PT-200 (385)

0.95°C

PT-500 (385)

0.55°C

PT-1000 (385)

0.35°C

RTD Resolution

0.01°C (0.01°F)

Cu10.01 C

0.1°C (0.1°F)

J

0.4°C

K

0.5°C

T

0.4°C

E

0.4°C

R

1.4°C

S

1.4°C

B

1.4°C

L

0.45°C

U

0.45°C

N

0.6°C

XK

0.4°C

BP

1.1°C

TC Resolution

J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F

مشخصات فنی

تابع Ramp

Source functions

Voltage, current, resistance, frequency, temperature

Ramps

Slow ramp, Fast ramp, 25% step-ramp

عملکرد توان حلقه

Voltage

24 V

Accuracy

10%

Maximum current

22 mA, short circuit protected

توابع Step

Source functions

Voltage, current, resistance, frequency, temperature

Steps

25% of range, 100% of range

مشخصات محیطی

دمای کاری

-10°C to +55°C

ذخیره سازی دما

-20°C to +71°C

ارتفاع کاری

3000 m

مشخصات حفاظتی و استاندارد ایمنی دستگاه

Agency approvals

EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992

مشخصات فیزیکی و عمومی دستگاه

ابعاد

200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in)

وزن

650 g (23 oz)

باتری ها

4 AA alkaline batteries

باتری کمکی

Separate battery compartment, accessible without breaking calibration seal

پورت اتصال کانکتور

Pressure module connector, also used for remote real-time programming
