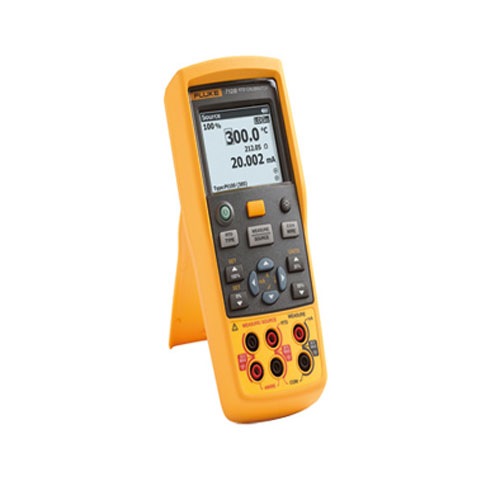

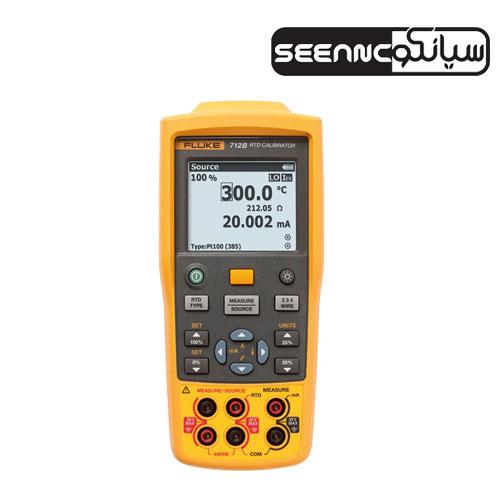

کالیبراتور دیجیتالی دما FLUKE 712B RTD

30 V

-10°C to 50°C

-30°C to 60°C

2,000 m

12,000 m

Non condensing

90% (10°C to 30°C)

75% (30°C to 40°C)

45% (40°C to 50°C)

(Without condensation)

MIL-T-28800E, Class 2

1 m

IEC 60529: IP52

IEC 61326-1, Portable

IEC 61010-1, Max 30 V to earth, Pollution Degree 2

4 AA NEDA 1.5A IEC LR6 batteries

52.5 x 84 x 188.5 mm

515 g

0-24 mA

0.001 mA

0.010% + 2 μA

± (0.002% of reading + 0.002% of range) /°C ( < 18°C or >28°C)

Accuracy (% of reading +counts)

0.00 Ω to 400.00 Ω

0.015% + 0.05 Ω

400.0 Ω to 4000.0 Ω

0.015% + 0.5 Ω

Read accuracy is based on 4-wire input. For 3-wire ohm measurements, assuming all three leads are matched, add 0.05 Ω (0.00 Ω~400.00 Ω), 0.2 Ω (400.0 Ω~4000.0 Ω) to the specifications.

±(0.002% of reading + 0.002% of range) / °C (< 18°C or > 28°C)

1.0 Ω to 400.0 Ω

1.00 Ω to 400.00 Ω

400.0 Ω to 1500.0 Ω

1500.0 Ω to 4000.0 Ω

0.1 mA to 0.5 mA

0.5 mA to 3 mA

0.05 mA to 0.8 mA

0.05 mA to 0.4 mA

0.015% + 0.1 Ω

0.015% + 0.05 Ω

0.015% + 0.5 Ω

0.015% + 0.5 Ω

0.00 Ω to 400.00 Ω

0.01 Ω

400.0 Ω to 4000.0 Ω

0.1 Ω

± (0.002% of reading + 0.002% of range) /°C ( <18°C or >28°C)
Supports pulsed transmitters and PLCs with pulse times as short as 5 ms

RTD Type (α)

Range (°C)

Measure (°C)

Source (°C)

1-year

2-year

Source current

1-year

2-year

10 Ω Pt (385)

-200 to 100°C

1.5°C

3°C

1 mA

1.5°C

3°C

100 to 800°C

1.8°C

3.6°C

1 mA

1.8°C

3.6°C

50 Ω Pt (385)

-200 to 100°C

0.4°C

0.7°C

1 mA

0.4°C

0.7°C

100 to 800°C

0.5°C

0.8°C

1 mA

0.5°C

0.8°C

100 Ω Pt (385)

-200 to 100°C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

100 to 800°C

0.015%
+0.18°C

0.03%
+0.36°C

1 mA

0.015%
+0.18°C

0.03%
+0.36°C

200 Ω Pt (385)

-200 to 100°C

0.2°C

0.4°C

500 μA

0.2°C

0.4°C

100 to 630°C

0.015%
+0.18°C

0.03%
+0.36°C

500 μA

0.015%
+0.18°C

0.03%
+0.36°C

500 Ω Pt (385)

-200 to 100°C

0.3°C

0.6°C

250 μA

0.3°C

0.6°C

100 to 630°C

0.015%
+0.28°C

0.03%
+0.56°C

250 μA

0.015%
+0.28°C

0.03%
+0.56°C

1000 Ω Pt (385)

-200 to 100°C

0.2°C

0.4°C

250 μA

0.2°C

0.4°C

100 to 630°C

0.015%
+0.18°C

0.03%
+0.36°C

250 μA

0.015%
+0.18°C

0.03%
+0.36°C

100 Ω Pt (3916)

-200 to 100°C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

100 to 630°C

0.015%
+0.18°C

0.03%
+0.36°C

1 mA

0.015%
+0.18°C

0.03%
+0.36°C

100 Ω Pt (3926)

-200 to 100°C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

100 to 630°C

0.015%
+0.18°C

0.03%
+0.36°C

1 mA

0.015%
+0.18°C

0.03%
+0.36°C

10 Ω Cu (427)

-100 to 260°C

1.5°C

3°C

1 mA

1.5°C

3°C

120 Ω Ni (672)

-80 to 260°C

0.15°C

0.3°C

1 mA

0.15°C

0.3°C

50 Ω Cu (427)

-180 to 200°C

0.4°C

0.7°C

1 mA

0.4°C

0.7°C

100 Ω Cu (427)

-180 to 200°C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

YSI400

15 to 50°C

0.2°C

0.4°C

250 μA

0.2°C

0.4°C

1. Sensor inaccuracies not included.
2. Resolution: 0.1°C.
3. Read accuracy is based on 4-wire input. For 3-wire RTD measurements, assuming all three RTD leads are matched, add 1.0°C (Pt10 and Cu10), 0.6°C (Pt50 and Cu50), 0.4°C (Other RTD types) to the specifications.
4. Source Accuracy in source mode is based on 0.5 mA~3 mA (1.00 Ω~400.00 Ω), 0.05 mA~0.8 mA (400.0 Ω~1500.0 Ω), 0.05 mA~0.4 mA (1500.0 Ω ~4000.0 Ω), excitation current (0.25 mA for Pt1000 range).
5. Temperature Coefficient: ±0.05°C /°C for measure, ±0.05°C /°C (< 18°C or > 28°C) for source.
6. Supports pulsed transmitters and PLCs with pulse times as short as 5 ms.
