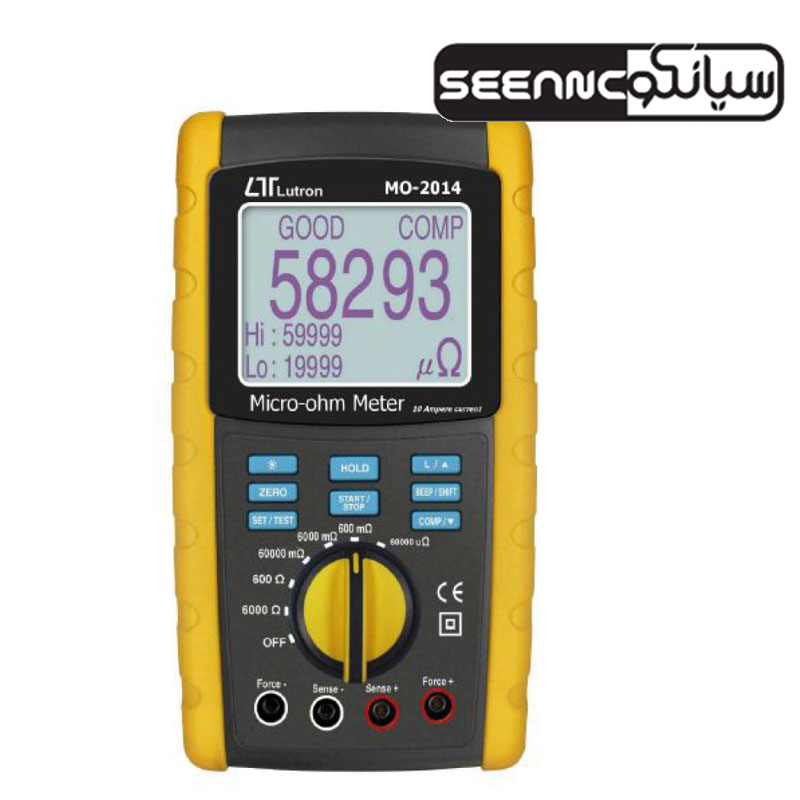

میلی اهم متر و میلی آمپرمتر لوترون LUTRON MO-2014

محدوده تست (تست جریان)

60000uΩ (10 A DC)

600mΩ (1 A DC)

6Ω (10 mA DC)

600Ω (1 mA DC)

6000Ω (100 uA DC)

* Warning LCD Indicator

* Buzzer

0 to 50°C (32 to 122°F).

Less than 80 % R.H.

DC 1.5 V, AA (UM-3)Battery X 8 pcs.

AC to DC 9V power adapter

* 10A / 250V

* Size :  6.3 x 32mm dia.

225 x 125 x 64mm

Approx. 790g

لوازم جانبی

* 4 wire with 2 kelvin clips

* Instruction manual

* AC/DC 9V power adapter

لوازم سفارشی

* USB cable, USB-01.

* RS232 cable, UPCB-02

* Data Acquisition Software, SW-U801-WIN, SW-E802.

* SD card data recorder, DL-9602SD

60000 uΩ

1 uΩ

10 A

± (0.25 % + 25 d)

600 mΩ

10 uΩ

1 A

6000 mΩ

100 uΩ

100 mA

60000 mΩ

1000 uΩ

10 mA

600 Ω

10 mΩ

1 mA

6000 Ω

100 mΩ

100 uA

± (0.75 % + 3 d)

@ The above accuracy is based on the reading value.

@ Spec. tested under the environment  RF Field Strength less han 3 V/M & frequency less than the 30 MHz only.

محدوده

ولتاژ مدار باز

60000 uΩ

Approx. DC 4.33 V

600 mΩ

Approx. DC 4.33 V

6 Ω

Approx. DC 4.33 V

60 Ω

Approx. DC 4.33 V

600 Ω

Approx. DC 4.33 V

6000 Ω

Approx. DC 4.33 V
