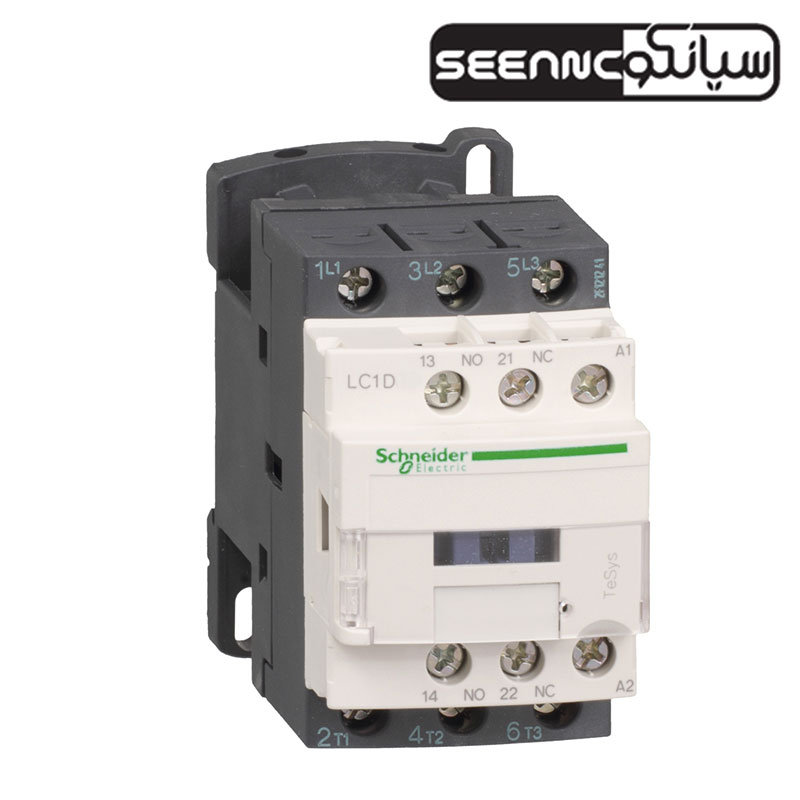

معرفی و خرید کنتاکتور اشنایدر مدل Schneider LC1D09M7

TeSys

Range

TeSys D

Product name

Contactor

Product or component type

LC1D

Device short name

Resistive load

Motor control

Contactor application

AC-1

AC-4

AC-3

Utilisation category

3P

Poles description

3 NO

Power pole contact composition

Power circuit: <= 690 V AC 25…400 Hz

Power circuit: <= 300 V DC

[Ue] rated operational voltage

9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

[Ie] rated operational current

2.2 kW at 220…230 V AC 50/60 Hz (AC-3)
4 kW at 380…400 V AC 50/60 Hz (AC-3)
4 kW at 415…440 V AC 50/60 Hz (AC-3)
5.5 kW at 500 V AC 50/60 Hz (AC-3)
5.5 kW at 660…690 V AC 50/60 Hz (AC-3)
2.2 kW at 400 V AC 50/60 Hz (AC-4)

Motor power kW

1 hp at 230/240 V AC 50/60 Hz for 1 phase motors
2 hp at 200/208 V AC 50/60 Hz for 3 phases motors
2 hp at 230/240 V AC 50/60 Hz for 3 phases motors
5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors
0.33 hp at 115 V AC 50/60 Hz for 1 phase motors

Motor power HP (UL / CSA)

AC at 50/60 Hz

Control circuit type

220 V AC 50/60 Hz

[Uc] control circuit voltage

1 NO + 1 NC

Auxiliary contact composition

6 kV conforming to IEC 60947

[Uimp] rated impulse withstand voltage

III

Overvoltage category

25 A (at 60 °C) for power circuit
10 A (at 60 °C) for signalling circuit

[Ith] conventional free air thermal Current

250 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1

Irms rated making capacity

250 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

105 A 40 °C – 10 s for power circuit
210 A 40 °C – 1 s for power circuit
30 A 40 °C – 10 min for power circuit
61 A 40 °C – 1 min for power circuit
100 A – 1 s for signalling circuit
120 A – 500 ms for signalling circuit
140 A – 100 ms for signalling circuit

[Icw] rated short-time withstand current

10 A gG for signalling circuit conforming to IEC 60947-5-1
25 A gG at <= 690 V coordination type 1 for power circuit
20 A gG at <= 690 V coordination type 2 for power circuit

Associated fuse rating

2.5 mOhm – Ith 25 A 50 Hz for power circuit

Average impedance

Power circuit: 690 V conforming to IEC 60947-4-1
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified

[Ui] rated insulation voltage

0.6 Mcycles 25 A AC-1 at Ue <= 440 V
2 Mcycles 9 A AC-3 at Ue <= 440 V

Electrical durability

1.56 W AC-1
0.2 W AC-3

Power dissipation per pole

With

Front cover

Plate

Rail

Mounting support

CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508

Standards

BV
LROS (Lloyds register of shipping)
UL
GOST
GL
DNV
CSA
RINA
CCC

Product certifications

Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end

Connections – terminals

Power circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2
Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2

Tightening torque

12…22 ms closing
4…19 ms opening

Operating time

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Safety reliability level

15 Mcycles

Mechanical durability

3600 cyc/h 60 °C

Maximum operating rate
